Understanding Workflow Audit Results

After a workflow audit completes, you have access to a comprehensive analysis of your portal’s automation layer. This page explains how to read and act on each part of the results.

Results Overview

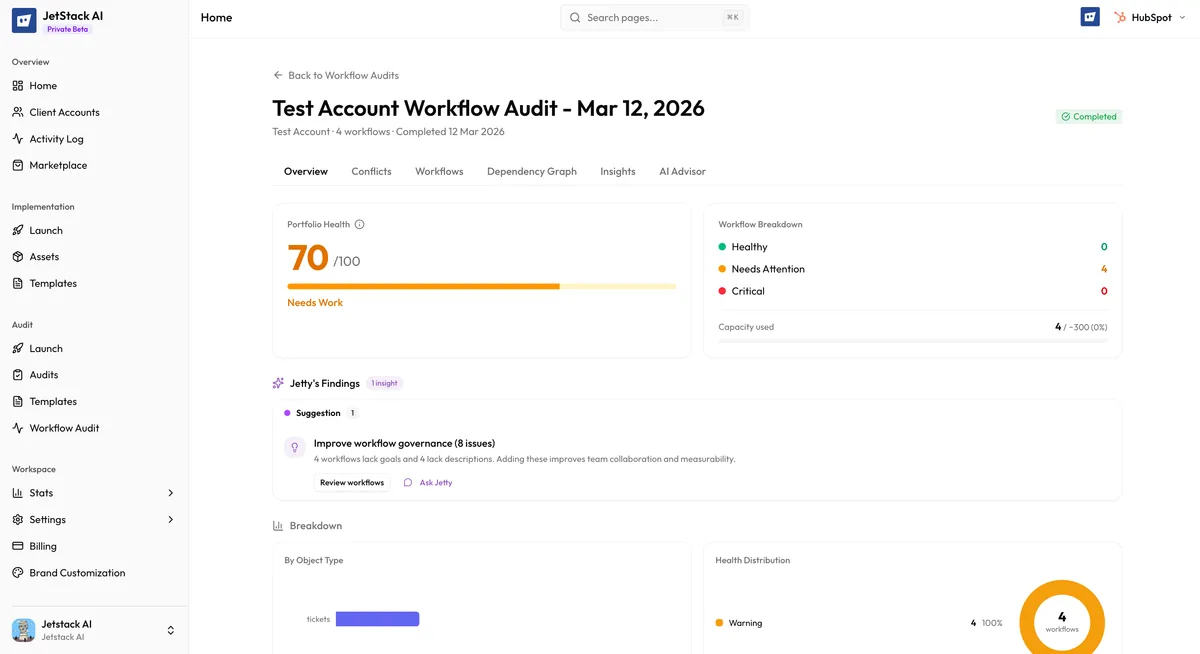

The workflow audit results view opens to a summary dashboard showing:

• Total workflows analyzed — Active and inactive count
• Average health score — The mean health score across all workflows
• Conflicts detected — Total number with severity breakdown
• Top issues — The most critical findings requiring attention

From the summary, you can drill into each section for detail.

Workflow Health Scores

Every analyzed workflow receives a health score from 0-100 based on how well it follows best practices.

What the Score Measures

Category	What It Evaluates
Naming	Does the workflow name follow a consistent convention? Is it descriptive?
Enrollment criteria	Are triggers specific and well-defined? Are they likely to catch the right contacts?
Branching logic	Are if/then branches structured clearly? Are there dead-end branches?
Suppression	Are suppression lists or criteria configured to exclude inappropriate contacts?
Re-enrollment	Are re-enrollment settings intentional and appropriate for the workflow’s purpose?
Goal criteria	Is there a defined exit condition so contacts do not remain in the workflow indefinitely?
Actions	Are actions properly configured? Are there deprecated or broken actions?

Score Ranges

Range	Meaning
85-100	Excellent. Follows best practices across all categories.
70-84	Good. Minor improvements possible in specific areas.
50-69	Average. Functional but with gaps in configuration or best practices.
Below 50	Needs attention. Significant issues that may affect contacts or automation reliability.

Viewing Individual Scores

The workflow list shows each workflow with its health score, sorted from lowest to highest by default (so the most problematic workflows appear first). Click any workflow to see:

• The score breakdown by category
• Specific data points that affected the score
• AI-generated insight for this workflow (if available)
• Conflicts involving this workflow

Conflict Report

The conflict report lists all detected conflicts between workflows, organized by severity.

Conflict Severity Levels

Severity	Description	Example
Critical	Conflicts that actively cause incorrect behavior for contacts	Two workflows setting lifecycle stage to different values for the same segment
High	Conflicts likely to cause issues under certain conditions	Overlapping enrollment criteria with no suppression, leading to potential duplicate processing
Medium	Potential conflicts that may not always manifest	Two workflows that could theoretically act on the same contact but rarely overlap in practice
Low	Minor issues or suboptimal configurations	Redundant actions across workflows that waste processing but do not harm contacts

Conflict Detail

Each conflict entry shows:

• Conflict type — Competing actions, enrollment overlap, circular dependency, suppression gap, or race condition
• Affected workflows — The two or more workflows involved, with links to their individual details
• Description — What the conflict is and how it manifests
• Impact — What happens to contacts affected by this conflict
• Resolution steps — Recommended actions to fix the conflict
• AI insight — Natural-language explanation and recommendation (if generated)

Common Conflict Types

Competing Actions — Two workflows set the same property to different values. For example, Workflow A sets lifecycle stage to “MQL” while Workflow B sets it to “SQL” for contacts that meet both enrollment criteria.

Enrollment Conflicts — A contact meets the enrollment criteria for multiple workflows that perform conflicting operations. Without proper suppression, the contact enters both workflows.

Circular Dependencies — Workflow A enrolls contacts into Workflow B, and Workflow B enrolls contacts back into Workflow A. This can create processing loops.

Suppression Gaps — Workflows that should exclude certain contact segments but lack suppression criteria. Contacts that should be excluded end up processed.

Race Conditions — Multiple workflows trigger simultaneously for the same contact. The order of execution is unpredictable, leading to inconsistent outcomes.

Dependency Map

The dependency map provides a visual representation of how workflows relate to each other:

• Nodes represent individual workflows (color-coded by health score)
• Edges represent connections — enrollment triggers, shared resources, or action chains
• Clusters indicate groups of tightly connected workflows

Use the dependency map to:

• Identify isolated workflows with no connections (potentially orphaned)
• Find highly connected workflows that are central to the automation architecture
• Visualize the blast radius of changes — modifying a highly connected workflow affects many others
• Spot workflow clusters that should be consolidated

AI Insights

If AI insight generation was enabled, each section of the results includes natural-language findings:

• Ecosystem summary — Overview of the entire workflow architecture
• Per-workflow insights — Specific findings for workflows with notable scores or issues
• Per-conflict insights — Explanation and resolution guidance for each conflict
• Prioritized recommendations — Ordered list of actions to improve the automation layer

Acting on Results

After reviewing the results, follow this order:

1. Resolve critical conflicts first — These are actively causing problems for contacts
2. Address high-severity conflicts — Prevent likely issues before they manifest
3. Improve low-scoring workflows — Fix naming, add suppression, configure goals
4. Optimize the dependency structure — Consolidate redundant workflows, simplify chains
5. Re-audit — Run a new workflow audit to verify improvements
